Home Recording of Acoustic Guitar Through a Microphone and Piezo DI - How to Do It Yourself in 5 Short Steps
3

Even if your home studio is not yet prepared with acoustic adaptation you can always look for "ways out" to record acoustic guitars in acceptable quality.

Here is a try with Audio Technica ATM450 cardioid condenser microphone (199 Eur, new) via TC Electronic Desktop Konnekt Firewire interface (80 Eur, used)

Here's how I do it in 5 short steps:

1. Place the mike as close to the instrument as possible without interrupring your playing comfort. By doing so you minimalize room influence. In my case this is about 20 cm from 12th fret. This placement gives pretty big and balanced sound of the guitar. At the same time it gives quite a lot finger/string noise but that is what I don't mind at all as a listener :)

2. Make sure you optimize gain level of mic-pre so that you are able to capture full dynamic range of your instrument without overdriving the signal. That overdrive is heard as unpleasant buzz and is visible as signal peaks in you DAW that reach the borders or audio track/region. The distorted signal is impossible to repair in further process. So consider input gain setting as the MOST IMPORTANT part of recording process and take enough time to optimize the signal level.

3. Connect your guitar output to another input in the audio interface - it should be "instrument" or "Hi-Z" input if available. Here adjust the gain properly as well.

4. If you're recording with metronome or backing track then get a closed headphones and adjust the mix for maximum aural comfort. Make sure you'll be using direct monitoring to avoid any latency. If your AI doesn't have a direct monitoring output then better use open type headphones and adjust the backing level so that you can hear your guitar acoustically well but no backing tracks nor metronome beep shall be present in recorded signal.

5. Be relaxed in your whole body and mind when playing. Make sure you've practiced enough and you know the music. If not you'll probably get annoyed and tired of making millions of takes. Usually you should get the music nailed in 3-5 takes. That applies to memorized music, if you record improvised parts then it can take easily more takes. Anyway after recording 3-5 takes get a break, listen to them and decide what to do with them.

Don't forget that this is not a studio situation. It's always a compromise and you can't reach studio quality without spending lots of money on room adaptation and purchasing studio-level gear. What you can obtain is acceptable sound quality. That should be enough for demos or promo recordings and it should cost really small money. Do not invest in expensive gear - rather make sure your hardware and software is simple to operate, user-friendly and has all features important for the situation. And the situation is: we are recording musician and recording engineer at the same time.

Waveforms of recorded guitar - cond. mike on top - notice the big dynamic range without touching track borders to avoid signal distortion

Here we go - press rec and play :)

The guitar is a Guild F65CE medium deep body with cutaway - so not the biggest sounding guitar. I mixed the piezo DI signal appr. 30% and microphone appr. 70 %.

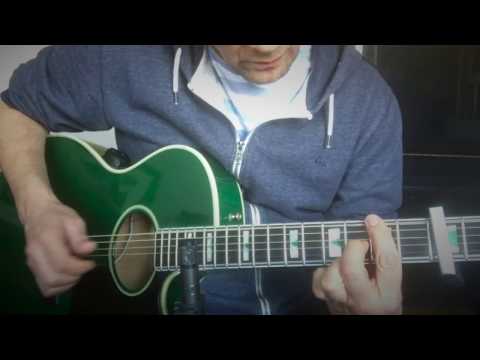

YouTube preview picture
Below you can as well have a listen to 100% dry tracks, without any effects:

atm450_dry_acg.mp3

piezo_di_dry_acg.mp3

2 comments sorted by best / new / date

    mulefish
    You may run into phase issues combining a di signal and a mic recording. Probably need to touch on that a little bit. Also relevant to this is keeping in a consistent position in regards to the mic. Some players move around and get closer and further away from the mic during the performance. Besides effecting tonality it really hampers ones ability to get your mic and DI signals in phase. To get multiple signals in phase, you can use a sample delay on the DI track to push it back in line with the mic recording, or you can zoom in on the daw so you can see the individual waveform peaks and manually align them. You could also try flipping the phase on one track - sometimes this is all that's needed.  Generally, out of phase signals will hollow out your low end. If you mute one of the tracks and your sound gets fuller (and probably better) then you probably have phase issues. Having said that, things don't necessarily have to be perfectly in phase - and you should always use your ears. Perhaps no phase alignment sounds best for your particular setup/application
    Dominant7
    Sure, that's the basic of recording, I didn't want to dig in it here, but thanks for mentioning. The visual method of zooming the waveforms in DAW and ear check what you describe it's usually enough to sort this out.
